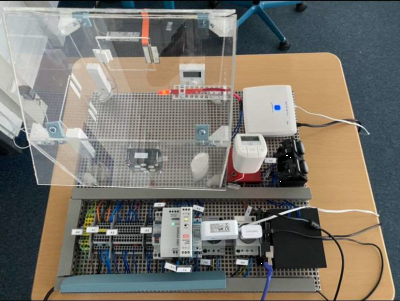

Construction of the model house

A model building has been constructed using acrylic glass panels. The acrylic glass panels were measured and then cut to size. Holes were drilled into the acrylic glass panels to allow for the assembly of the individual panels into a model building. Two of the acrylic glass panels have cut-out openings. The first hole serves as a door, and the second hole serves as a window. Instead of a rectangular opening for air passage for the fan, a series of smaller holes were chosen to enable air circulation. This solution provides finger protection and prevents any possibility of reaching into the fan. A suitable acrylic glass panel was used to close the two openings, which is attached with a simple hinge. Various brackets were modeled and subsequently 3D printed to connect the individual panels into a complete model building. All necessary sensors will be installed in the model building at a later stage.

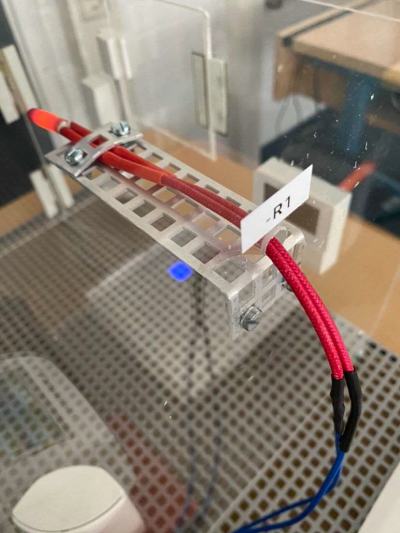

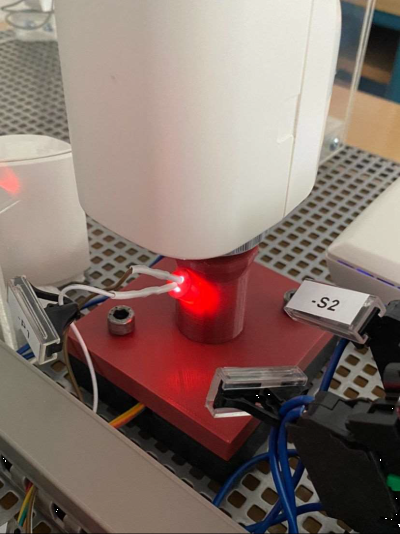

Below are some illustrations showing the arrangement of the sensors.
